AsCARD Mint v.05.101 ECG Electrocardiograph

Description

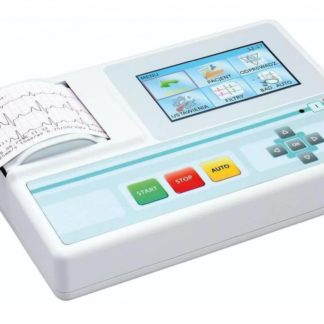

AsCARD Mint v.05.101 ECG Electrocardiograph

AsCARD Mint electrocardiograph is a 1- and 3-channel ECG unit which enables to make electrocardiogram in full 12 leads.

Intended for ECG examinations of adult and paediatric patients aimed at identification of cardiological abnormalities, myocardial ischaemia or infarction. The device is intended for use in healthcare facilities by duly trained personnel. ECG examination may be recorded in a manual or automatic mode with the ability to perform the analysis and interpretation.
The electrocardiograph is based on advanced microprocessor technology. It is equipped with a thermal printer with a high-resolution head and graphical LCD display. A high-tech membrane keyboard makes the AsCARD Mint device operation intuitive, and its menu navigation exceptionally easy. This light-weight, small-footprint and battery-powered enables the device to be easily transported to any location. With a plastic casing and foil-covered keyboard, the device is neat and easy to clean.

Technical specifications

• dimensions: 220x153x55 mm (L x W x H)
  weight: < 0,6 kg
  recording of standard 12 ECG leads
  saving the ECG signal simultaneously from all the 12 leads during the automatic recording, together with the date and time of the examination, filter settings, examination recording time and, optionally, patient’s data, in the internal memory
  printout of the automatic ECG recording from internal memory, in groups of three leads
  printout of the analysis, interpretation of automatic ECG examination
  display of 1, 3, 6 or 12 lead ECG recordings
  printout of 1 or 3 lead ECGs of the selected group:
  attaching the name of the patient to the ECG printout
  ECG printout in 1- or 3-channel modes
  membrane keyboard with functional keys
  the graphical menu is displayed on the screen for easy operation using the keyboard
  automatic analysis and interpretation in compliance with EN 60601-2-25 (CSE database) – interpretation dependable on the age and sex of a patient
  the memory of the last automatic examinations, with a limit from 5 to 1000
  up to 130 automatic examinations in battery mode
  continuous heart rate (HR) measurement and display
  automatic detection of QRS complex
  adapted to direct operation on an open heart
  power line interference filter: 50 Hz, 60 Hz
  muscle interference filter; filters available: 25 Hz, 35 Hz, 45 Hz
  contour line filters; filters available: 0.15 Hz, 0.45 Hz, 0.75 Hz, 1.5 Hz
  detection of electrode detachment, independent for each channel
  selectable channel to detect heart rate
  the thickness of the printing ECG waveform line to choose from: normal or bold
  presentation of the curves in the standard layout or Cabrera layout
  multilingual menu
  external USB communication port to connect a PC and the CardioTEKA software, for real-time transmission of ECG signal
  acoustic signalling of detected beats
  protection against defibrillation pulse
  detection and presentation of stimulating pulses on the printout
  automatic examination with the printout of patient data and clinic data
  data insert using a touchscreen keyboard and the arrow keys
  battery power-saving functions

Standard equipment

• limb electrodes, 4 pieces
  chest electrodes, 6 pieces
  KEKG-30R ECG cable
  medical power connector, M12-15
  RB1 paper 58 mm wide (1 roll)
  ECG gel
  operation manual
