AsCARD Gold3 Electrocardiograph with email

Description

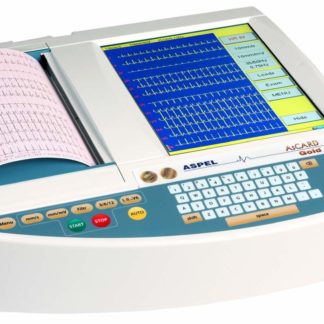

AsCARD Gold3 Electrocardiograph v .201

An electrocardiograph constructed to deliver the most exacting expectations. The up-to-date keyboard design is one of its several advantages, which makes the entire operating process much easier for the end user.

Download a Comparison of the ECG Range

The AsCard Gold electrocardiograph is equipped with a built-in printer enabling A4 format printout and furthermore, the model is distinguished by:

A colour LCD TFT (10,4′) touchscreen
ECG M@IL function for sending examinations’ records to an e-mail address or to another ECG apparatus,
on-screen review of the saved in the database examinations with the option of changing leads’ quantity, amplification or speed levels,
easy to operate patients’
A database with a memory containing up to 2000 examination records, and the ability to record into an external memory option (Pen Drive – USB interface),
It’s ability to be connected to a PC in order to increase its functionality.

Technical specifications

3, 6, 12-channel
12 standard ECG leads
manual and automatic mode
alphanumeric, very comfortable to use the keyboard
LCD TFT (10,4″, 480×640) touchscreen
a preview on the screen is saved in the database examinations function,
on-screen review of analyses and interpretations of saved in the database examinations
connection with the external keyboard
Thermo-active and dust free paper (roll: 25m, width: 210 mm)
EASY LOAD – automatic paper loading
analysis and interpretation
pacemaker detection
sensitivity: 2,5/5/10/20 mm/mV
paper speed: 5/10/25/50 mm/s
contour line filters; filters available: 0.15Hz, 0.45Hz, 0.75Hz, 1.5Hz
mains disturbance filter – 50Hz,60Hz
muscular disturbances filter – 25Hz, 35Hz, 45Hz
an internal memory of 2000 examinations
complex patient base
input circuit protected against a defibrillation impulse
signalization of accumulator charging
INOP signalisation independent for each electrode
communication with PC via a USB device
possibility to sent ECG examination and medical data via e-mail directly from the device
recording ECG examination on the flesh drive i.e. PenDrive (via USB host)
A4 printout on an external printer (via USB host)
multilingual menu
main supply 90-264 V, 47-63Hz
internal accumulator with charger, 21.6V/2.2Ah
battery capacity: 3000 automatic examinations
dimensions (LxWxH): 370x372x94 mm
weight: 4,3 kg

We can offer Limited Companies access to Leasing at competitive rates enabling you to spread your costs over time. Call us for a no-obligation quote.

Standard equipment

Patient cable KEKG30 v.001 – 1 pc/s (07-110-0001)
Suction electrodes EPP v.001 – set of 6 (07-110-0011)
Clamp electrodes EKK v.001 – set of 4 (07-110-0013)
Gel – 250g v.001 (07-110-0022)
ECG paper – 1 pc/s
Ethernet cable

Optional

Archivisation and Database software – CardioTEKA
Trolley WA4 v.002 (07-110-0025)
ECG paper R210 (07-110-0034)
